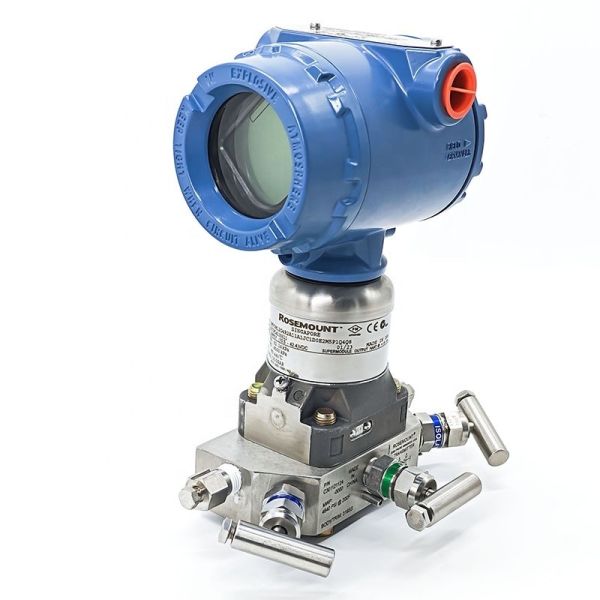

New Rosemount Pressure Transmitter 3051S Series Coplanar Differential Gauge Absolute
■ Designed and engineered to provide optimal performance with Rosemount 3051S Transmitters.
■ Reduce cost and leak points with flangeless coplanar design.
■ Fully integrated manifold and transmitter assemblies come fully leak checked, calibrated and assembled allowing for one purchase order to save time and cost.
■ Rosemount manifolds provide a wide variety of styles, materials, and configurations to fit any process. Rosemount 3051S Coplanar Pressure Transmitters are the industry leader for Differential, Gage, and Absolute pressure measurement. The coplanar platform allows seamless integration with manifolds, primary elements, and seal solutions. Capabilities include:
■ Ultra, ultra for flow, and classic performance
■ 4–20 mA HART®WirelessHART®FOUNDATION™Fieldbus protocols
■ Safety Certification (Option code QT)
■ Advanced diagnostics (Option code DA2)
■ Remote display and interface (Option code M7, M8, or M9)
| Proof pressure | ≤1.5X rated pressure or 110MPa which ever is less |
| Pressure type | Gauge, absolute ,sealed gauge |
| Power Supply Effects | ±0.001% /10V (12~42V DC) |
| Static Pressure Effects | ±(0.05%URL+0.075%Span)/10MPa |
| Operating Temperature Range | -20℃~80℃ |
| Storage Temperature Range | -40℃~120℃ |
| Power supply | 15～30VDC |
| Output signal | 4～20mA 0～10/20mA 0/1～5VDC |
| Working Pressure Limits | Maximum working pressure: 16MPa,25MPa,40MPa |
| Sensor Body | 316L stainless steel |
| UpTime | < 15s |
| Process Connection | Flange with fixing thread 7/16-20 UNF and 1/4-18 NPT female thread on both sides |
| Insulation resistance | 100MΩ,100VDC |
| Protection | IP65 |
